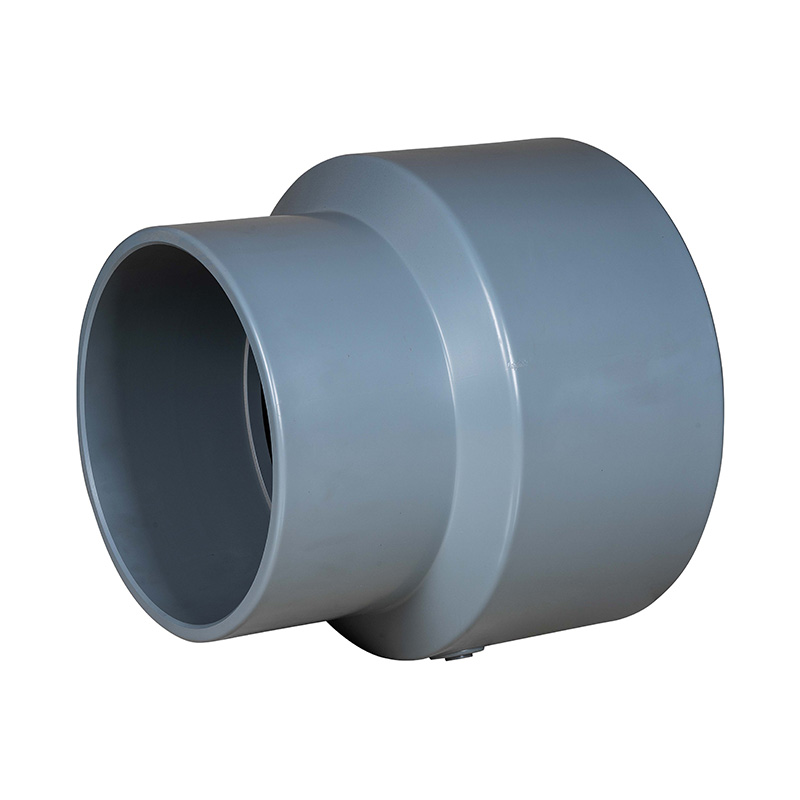

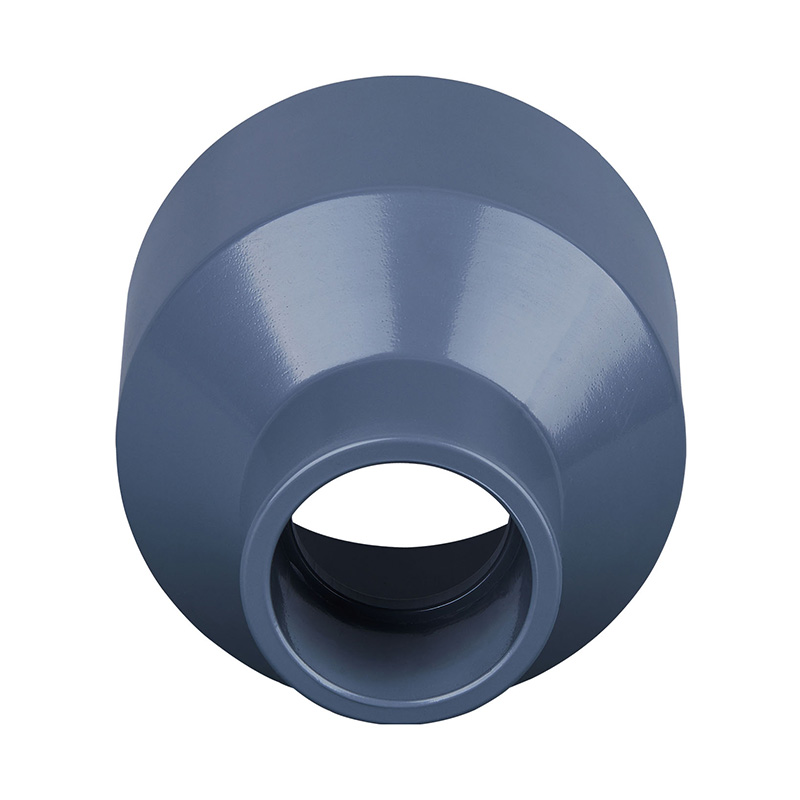

کاهش دهنده لوله CPVC DN15-600

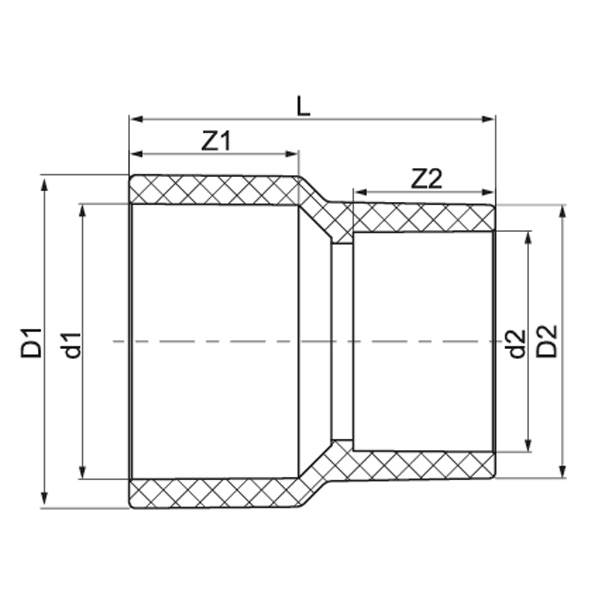

DN

D1

D2

d1

d2

L

Z1

Z2

DN20X15

32

27

25

20

42

19

16

DN25X15

40

27

32

20

48.5

22

16

DN25X20

40

32

32

25

49

22

19

DN32X20

50

32

40

25

57

26

19

DN32X25

50

40

40

32

57

26

22

DN40X25

61

40

50

32

67

31

22

DN40X32

61

50

50

40

67

31

26

DN50X25

75

40

63

32

80.5

38

22

DN50X32

75

50

63

40

80.5

38

26

DN50X40

75

61

63

50

81

38

31

DN65X25

88

40

75

32

93.5

44

22

DN65X32

88

50

75

40

93.5

44

26

DN65X40

88

61

75

50

94

44

31

DN65X50

88

75

75

63

95

44

38

DN80X25

105

40

90

32

108

51

22

DN80X32

105

50

90

40

108

51

26

DN80X40

105

61

90

50

108.5

51

31

DN80X50

105

75

90

63

109.5

51

38

DN80X65

105

88

90

75

110.5

51

44

DN 100X40

127

61

110

50

130

61

31

DN 100X50

127

75

110

63

130

61

38

DN100X65

127

88

110

75

130

61

44

DN100X80

127

105

110

90

130

61

51

DN125X80

161

106

140

90

168

76

51

DN125X100

161

126

140

110

182

76

61

DN150X80

182

106

160

90

175

86

51

DN150X100

182

126

160

110

188

86

61

DN150X125

182

162

160

140

210

86

76

DN200X80

248

106

225

90

210

118.5

51

DN200X100

248

126

225

110

210

118.5

61

DN200X125

248

162

225

140

230

118.5

76

DN200X150

248

182

225

160

258

118.5

86

DN250X100

310

127

280

110

272.5

146

61

DN250X125

310

160

280

140

278

146

76

DN250X150

310

180

280

160

283

146

86

DN250X200

310

251

280

225

297

146

118.5

DN300X100

351

127

315

110

300.5

163.5

61

DN300X125

351

160

315

140

307

163.5

76

DN300X150

351

180

315

160

311.5

163.5

86

DN300X200

351

251

315

225

325

163.5

118.5

DN300X250

351

310

315

285

336.5

163.5

146
